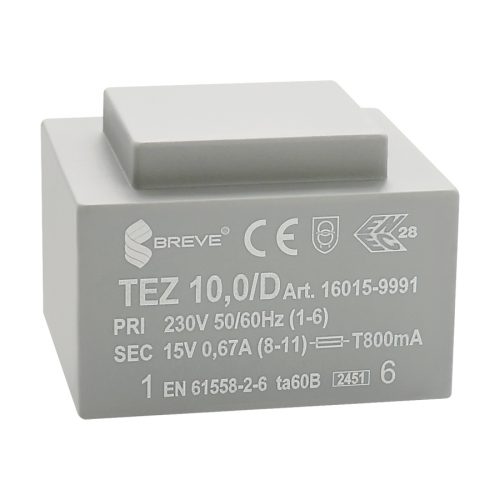

TEZ - Transformers for PCB

Transformers for printed circuit boards designed chiefly for power supply circuitry assemblies of electronic devices. They feature small dimensions and a compact build as well as having an increased mechanical durability and resilience to climate elements (cast resin). The transformers are made at IP00 protection grade, maximum ambient temperature 40°C or 60°C, thermal class of insulation B (130°C). Manufactured in compliance with EN61558-2-1, EN61558-2-4, EN61558-2-6.

Rated power: 0,5 – 50VA
Rated voltage PRI: 24 – 500V 50/60Hz
Rated voltage SEC: 6 – 500V

BREVE has received the ENEC certificate for the following TEZ transformers:

Rated power: 0,5 – 50VA
Rated voltage PRI: 24V – 400V (TEZ 0,5 – 1,5VA: 24V – 230V)
Rated voltage SEC: <50V (idle voltage)
Short circuit resistance for TEZ 0,5 – 3,0VA.

For TEZ 4,0 /D and TEZ 6,0 /D products Breve has also received the VDE certificate:

Rated power: 4VA and 6VA
Rated voltage PRI: 24V 400V
Rated voltage SEC: <50V (idle voltage)
Non-resistant and safety.
