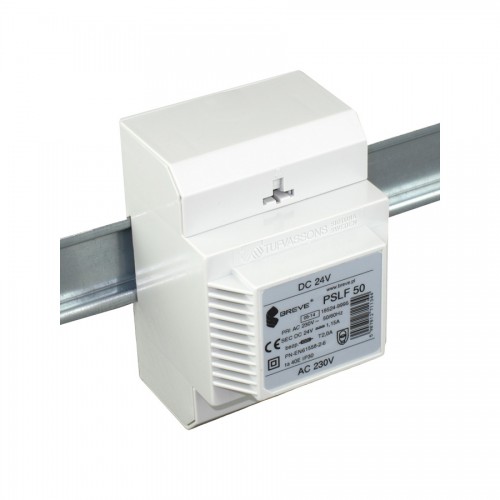

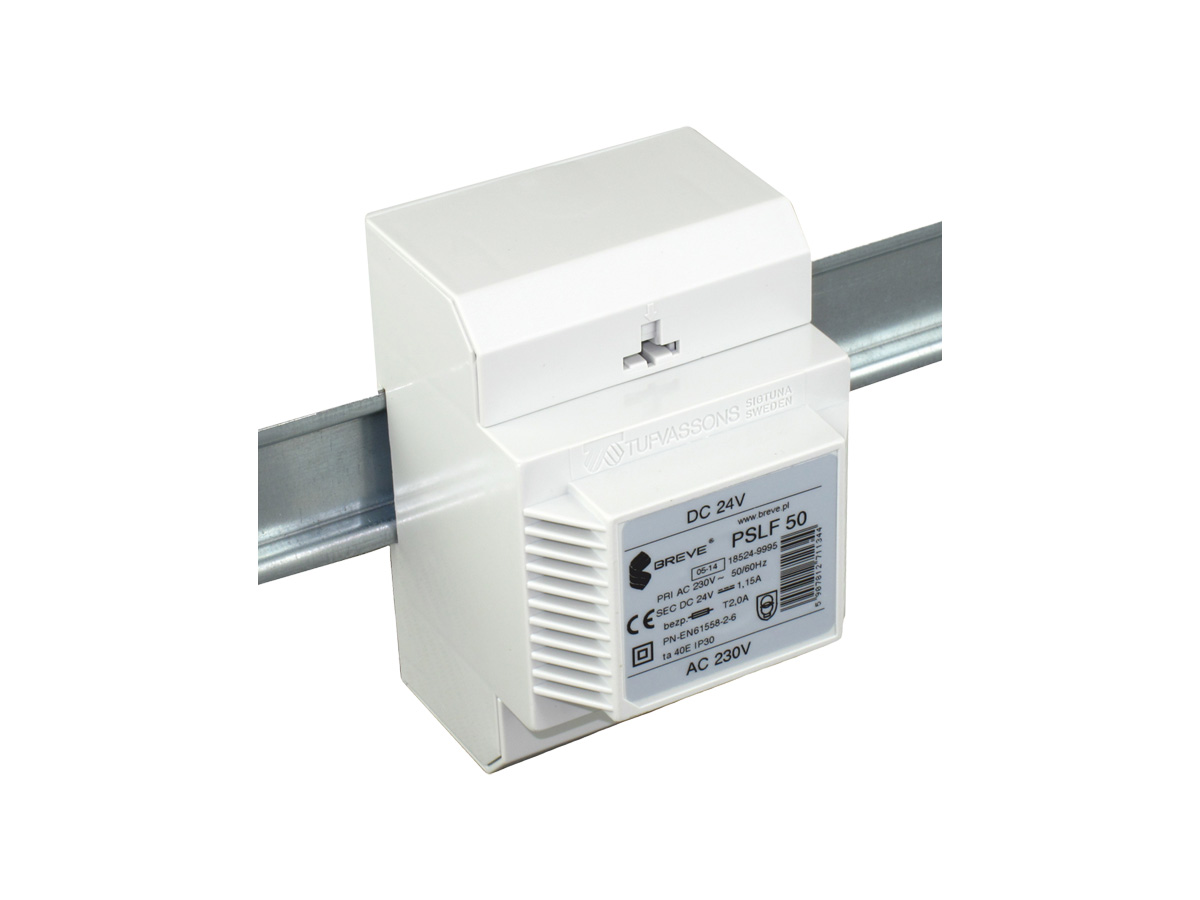

PVL(F) and PSL(F) - Transformer, encased power supplies
Encased power supplies with direct current output designed for assembly on T-35 bus (PS group) or in IP54 protection grade casings (PV group). Transformers from PSLF and PVLF groups additionally have build in current filtering circuitry. Elegant casings featuring proper mounting handles facilitate convenient and quick assembly. PSLR group are impulse power supplies with output voltage stabilisers. The transformers are made with Class II insulation and protection grade IP30 (PS group) or IP54 (PV group), maximum ambient temperature 40°C, thermal class of insulation B (130°C). Manufactured in compliance with EN 61558-2-6.
Rated power: 18 – 36W
Rated voltage PRI: 230V 50/60 Hz
Rated voltage SEC:DC 5 – 24V
